Microscopes - Series

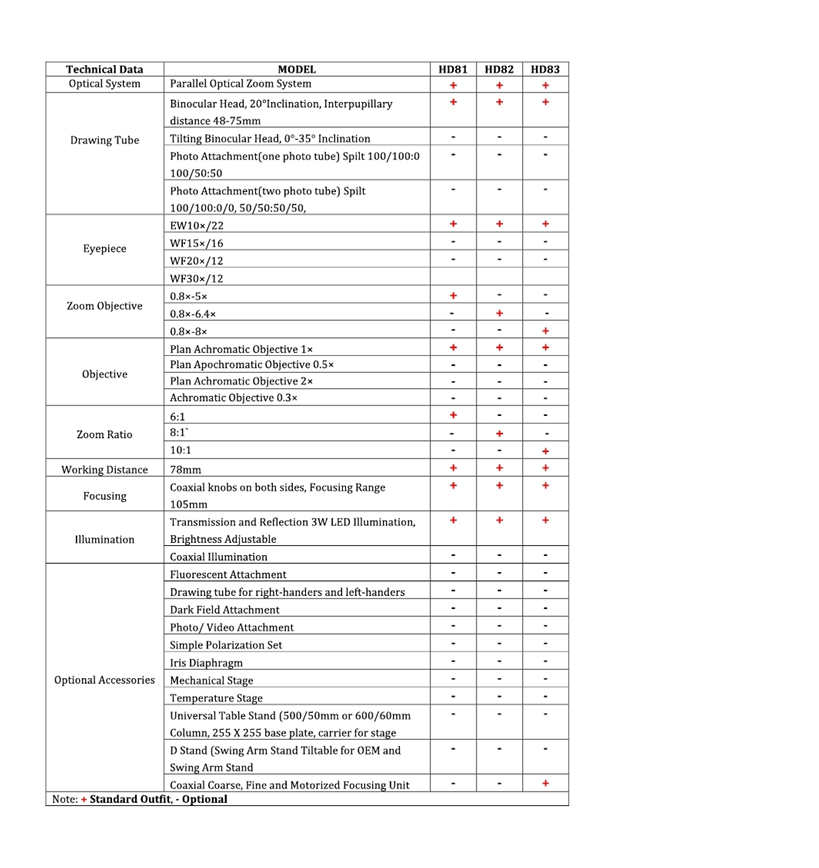

HD 80 Stereo Zoom Series
HD 80 Stereo Zoom Series: This high performance parallel stereo zoom is in a class by itself designed for superior microscopic performance rivaling that of high magnification compound microscopes through its unique single objective lens system. Systems are interchangeable and upgradable. Matched with our best stand which employs the latest in illumination systems, the HD80 series is a winning combination for Medical, Forensic and industrial use.
Unlimited Possibilities Space for your large projects
- The three new swing-arm stands, Standard and Large extend the range of applications for enormously.
- Boom Stand base dimension: 385x260x25mm, the max. distance from the vertical post to the end of base : 235mm.
- The larger and heavy base best to help keep stand more stable. Vertical Post : OD 31mm, main post 380 mm, a 225mm extension post can be attached. A Lock Ring on vertical post for stopping. Horizontal Post: OD.32mm, Long 530mm. Table clamp : Maximum opening 62 mm, Articulating arm : spring loaded arm for easy raising and lowering, multi-arm provides more flexibility 360 free revolution in horizontal direction, Radius of working area : maximum 104cm , Diameter of microscope body holder 76 mm, Focus block: rack and pinion focus adjustment 55mm Diameter of post focus block 30mm, Net weight 11.95 kg.
- Extremely Fine contrast and image sharpness.

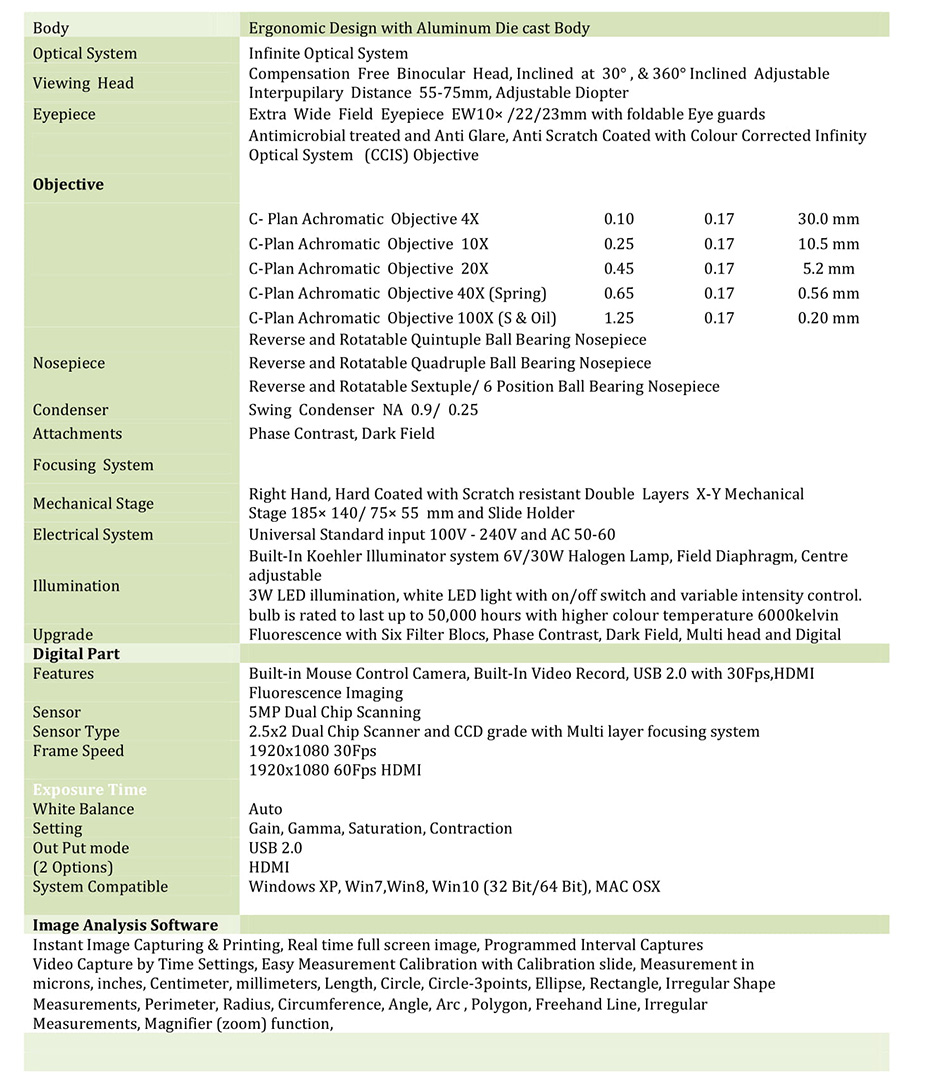

HD 60 Series Biological Microscope
HD 60 Series Biological Microscope: Instant Image Capturing & Printing, Real time full screen image, Programmed Interval Captures Video Capture by Time Settings, Easy Measurement Calibration with Calibration slide, Measurement in microns, inches, Centimeter, millimeters, Length, Circle, Circle-3points, Ellipse, Rectangle, Irregular Shape Measurements, Perimeter, Radius, Circumference, Angle, Arc , Polygon, Freehand Line, Irregular Measurements, Magnifier (zoom) function,
Features :
- Unit of disc fluorescence with 6 cubes. More cube options available. Polarizer, Simple Polarization Unit Analyzer. Excellent image experience that eliminates
- chromatic aberration with an infinite optical system Wide working area with185 mm x 140 mm table Movement area 75mm x 55mm Light distributionbetween100:0 andTrinocular headwith 80:20 option Optionally integrated Fluorescentattachments and 6 different fluorescent filters forsimultaneous operation Coaxial coarse Fine-tuning mechanismfor use on both sidesmast
- High-quality light performance withlong-lasting LED lighting technology.
- The advantage of working without electricity inthe field with the standard rechargeable light.
- Phase Contrast Condenser with 10X / 20X / 40X / 100X
- Infinite Optical system and C-Plan achromatic Objectives.
- Dark field condenser (dry) available Lens 4X-40X
- Dark Field (Oil) Condenser Available 100X Objective
- Phase Contrast Condenser with 10X / 20X / 40X / 100X
- Infinite Optical C-Planchromatic Objectives.

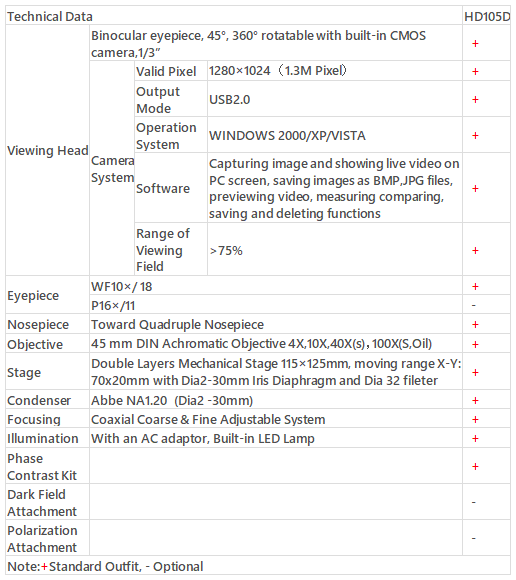

HD 105D
HD 105D: This Binocular digital microscope features built in 1.3 Megapixel Digital Microscopy Camera and professional software offering high resolution and user friendly operation. This combination of microscope, digital imaging system and software is easy to operate offering outstanding performance. It can take photos,videos and do measurement functions. The objectives are 4x,10x,40x and 100x for clear observation. Illumination is LED with variable light intensity. The microscope is primarily designed for students for image capturing and distant sharing. This unique combination of microscope, image system and software make HD105D microscopy system a professional tool for education applications. This microscope also provides a superior cost effective solution for computer interactive and clinical environments.

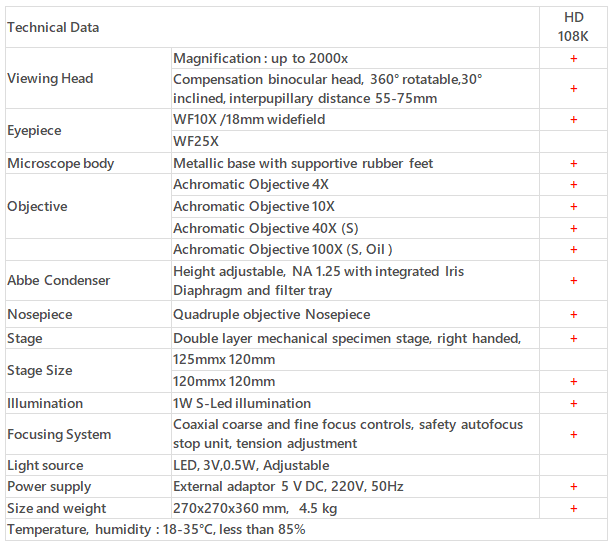

HD 108K Binocular Microscope
Features :
- Laboratory binocular microscope
- Compensation binocular head
- Quadruple ball-bearing nosepiece
- Mechanical stage
- Coaxial coarse and calibrated fine focus control
- Built-in LED illumination adjustable 3V, 0.5 W
- Optical system provided with Anti-Fungus treatment

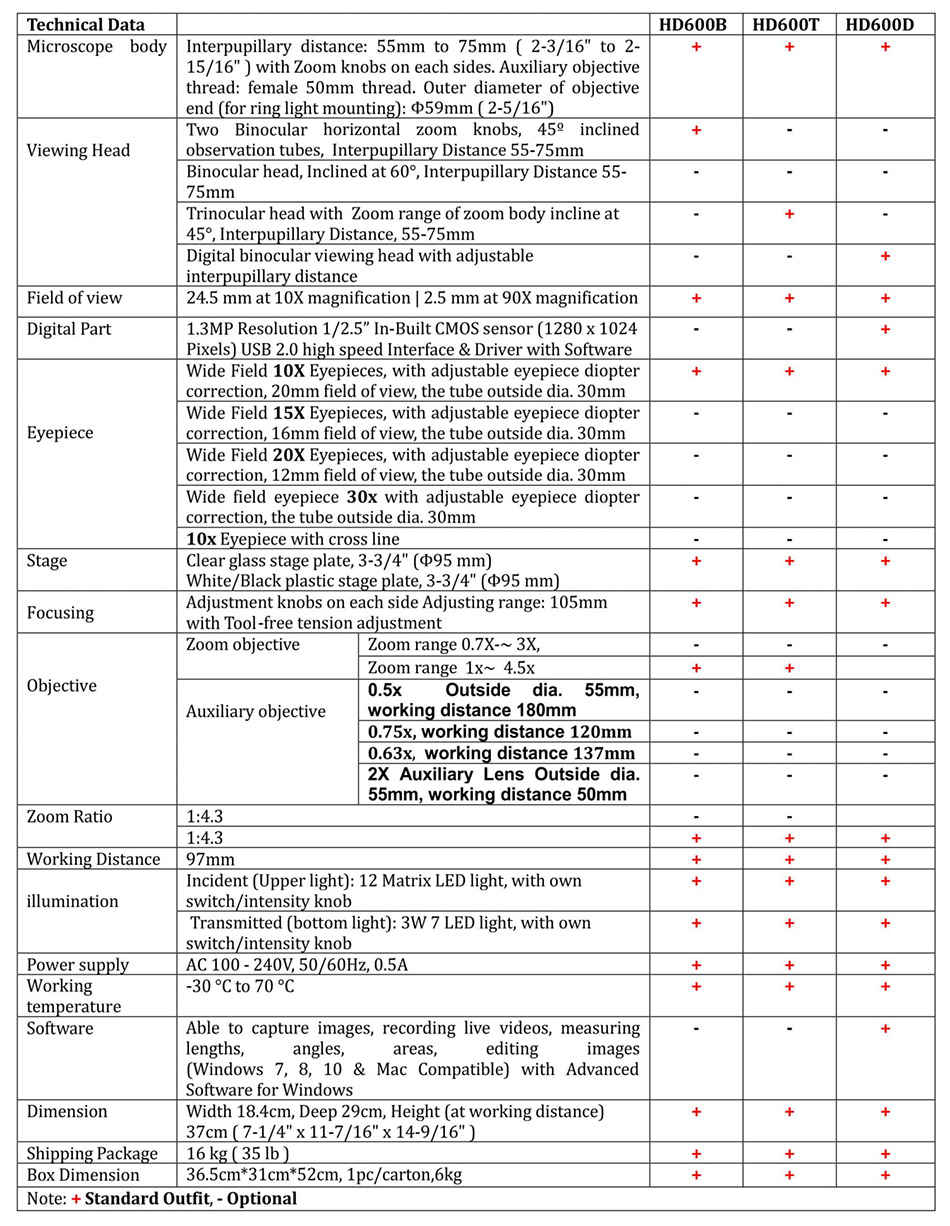

HD 600 Series
HD 600 Series: High quality , high function and excellent cost performance Best choose with ergonomic design, sharp image display and wide viewing field Providing a wide viewing field of dia 20mm with the zoom ratio of 1:4.5 Ideal instrument in academic, medical and industrial field.
Features :
- Laboratory binocular microscope
- Compensation binocular head
- Quadruple ball-bearing nosepiece
- Mechanical stage
- Coaxial coarse and calibrated fine focus control
- Built-in LED illumination adjustable 3V, 0.5 W
- Optical system provided with Anti-Fungus treatment
HD 108K Binocular Microscope
Features :
- Laboratory binocular microscope
- Compensation binocular head
- Quadruple ball-bearing nosepiece
- Mechanical stage
- Coaxial coarse and calibrated fine focus control
- Built-in LED illumination adjustable 3V, 0.5 W
- Optical system provided with Anti-Fungus treatment
HD2000D
HD2000D Digital Biological microscopes is a high level microscope with infinite optical system. With a built-in 3.2MP digital camera. Innovative mechanical stage structure prevents the scratches of users` arms, excellent optical performance, HD2000D is widely used in medical and sanitary establishments, laboratories, Institutes, colleges and universities for biological, historical, pathological, bacteriological, immunizations and pharmacy research
Features
- Integrated digital microscope, with High Resolution image sensor, the output images have high Signal to Noise Ratio.
- High definition images and videos, high frame rate.
- Professional software of real-time review, take photos and videos, measurement. Easy to operate and provision for Software calibration.
- LED light illumination with higher colour temperature 6000k LED technology provides cool& energy efficient White Light.
- Compact and flexible, ideally suited for desktop, laboratory worktable.
| Technical Data | HD 2000B | HD 2000T | HD 2000D | HD 2000F | ||||
|---|---|---|---|---|---|---|---|---|
| Optical System | Infinite Optical System | + | + | + | + | |||
| Viewing Head | Seidentopf Binocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm | + | + | + | + | |||
| Seidentopf Trinocular Head Inclined at 30°， Interpupillary 48-75mm | - | + | - | - | ||||
| Ф30 Wide Field Eyepiece EW10×/22, Eyepiece Tube Diameter 30mm | + | + | + | + | ||||
| Wide Field Eyepiece EW15×/16 | - | - | - | - | ||||
| Wide Field Eyepiece EW20×/12 | - | - | - | - | ||||
| Nosepiece | Backward Quintuple Nosepiece | + | + | + | + | |||
| Backward Quadruple Nosepiece | - | - | - | - | ||||
| Objective | Infinite Plan Achromatic Objective 4×，10×，40×，100× | + | + | + | + | |||
| Infinite Plan Objective 20×，60× / Fluoro & Phase Objectives | - | - | - | - | ||||
| Condenser | Abbe Condenser NA1.25 with Aperture Diaphragm | + | + | + | + | |||
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 24mm | + | + | + | + | |||
| Stage | Double Layers Mechanical Stage 230×150mm, Moving Range 78×54mm | + | + | + | + | |||
| Illumination | 12V/20W , 6V/20W Halogen Lamp, Brightness Adjustable | + | + | + | + | |||
| 12V/30W, 6V/30 W Halogen Lamp, Brightness Adjustable | - | - | - | - | ||||
| LED Illumination | - | - | - | - | ||||
| Image Sensor | 1/2 inch 3.2MP Multi Layer Image Sensor | - | - | + | - | |||
| Resolution | 2048×1536 | |||||||
| Pixel size | 3.2μm × 3.2μm | |||||||
| Shutter type | Electronic Rolling Shutter | |||||||
| Frame rate | 9 fps @ 2048×1536 | |||||||
| Sensitivity | 61dB | |||||||
| SNR | 43dB | |||||||
| Operating temperature | 0°C ~ 60°C | |||||||
| Image Output | USB2.0 | |||||||
| Image Analyzing Software Smart Tag-7 | Measurements, Edit, Print, Software Calibration | |||||||
| Operating System | Windows 2000/ XP/ Vista/Win7 /Win8&Mac | |||||||
| Video Adapter | C Mount 0.4× | - | - | - | - | |||
| C Mount 0.5× | - | - | - | - | ||||
| Slider Phase Contrast | Polarization Attachment | - | - | - | - | |||
| C Plan Phase Infinity 10x and 40xR Objectives, Abbe condenser, N.A. 1.25 with (1) phase slider with 10x & 40x annuli and Bright field position, green filter and centering telescope | - | - | - | - | ||||
| Turret Phase Contrast | C Plan Phase 10x, 40xR and 100xR objectives (1)Turret phase condenser with 10x, 40x and 100x phase annuli & BF position, centering telescope, green filter | - | - | - | - | |||
| Dark Field Attachment | Dark-field Condenser (Dry) | - | - | - | - | |||
| Dark-field Condenser (Oil) | - | - | - | - | ||||
| Reflected Light Source | Filter | Excitation | Diachronic Mirror | Barrier Filter | - | - | - | + |
| Blue excitation | BP460~490 | DM505 | BA515 | - | - | - | + | |
| Green excitation | BP510~550 | DM570 | BA590 | - | - | - | + | |
| Lamp | 3W LED Lamp(465-476nm) | - | - | - | - | |||
| Immersion Oil | Fluorescent Free Oil | - | - | - | - | |||
| Note:+Standard Outfit, - Optional | ||||||||
HD2000
HD2000: Series microscopes are high level microscope with infinite optical system. The advanced design of mechanical stage structure prevents the scratches of users` arms. They are widely used in medical and sanitary establishments, laboratories, Institutes, colleges and universities for biological, histological, pathological, bacteriological, immunizations and pharmacy research.
Features
- Excellent image quality with infinite optical system
- LED light illumination with higher colour temperature 6000k LED technology provides cool& energy efficient White Light.
- Comfortable operating with ergonomic design.
- Better illumination with sliding-in centerable condenser, convenient replacement with phase contrast and dark field condenser
- Compact and flexible, ideally suited for desktop, laboratory worktable.
| Technical Data | HD 2000B | HD 2000T | HD 2000D | HD 2000F | ||||
|---|---|---|---|---|---|---|---|---|
| Optical System | Infinite Optical System | + | + | + | + | |||
| Viewing Head | Seidentopf Binocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm | + | + | + | + | |||
| Seidentopf Trinocular Head Inclined at 30°，Interpupillary 48-75mm | - | + | - | - | ||||
| Ф30 Wide Field Eyepiece EW10×/22, Eyepiece Tube Diameter 30mm | + | + | + | + | ||||
| Wide Field Eyepiece EW15×/16 | - | - | - | - | ||||
| Wide Field Eyepiece EW20×/12 | - | - | - | - | ||||
| Nosepiece | Backward Quintuple Nosepiece | + | + | + | + | |||
| Backward Quadruple Nosepiece | - | - | - | - | ||||
| Objective | Infinite Plan Achromatic Objective 4×，10×，40×，100× | + | + | + | + | |||
| Infinite Plan Objective 20×，60× / Fluoro & Phase Objectives | - | - | - | - | ||||
| Condenser | Abbe Condenser NA1.25 with Aperture Diaphragm | + | + | + | + | |||
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mmCoarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm perRotation, Moving Range 24mm | + | + | + | + | |||
| Stage | Double Layers Mechanical Stage 230×150mm, Moving Range 78×54mm | + | + | + | + | |||
| Illumination | 12V/20W , 6V/20W Halogen Lamp, Brightness Adjustable | + | + | + | + | |||
| 12V/30W, 6V/30 W Halogen Lamp, Brightness Adjustable | - | - | - | - | ||||
| LED Illumination | - | - | - | - | ||||
| Slider Phase Contrast | Polarization Attachment | - | - | - | - | |||
| C Plan Phase Infinity 10x and 40xR Objectives, Abbe condenser, N.A. 1.25 with (1) phase slider with 10x & 40x annuli and Bright field position, green filter and centering telescope | - | - | - | - | ||||
| Turret Phase Contrast | C Plan Phase 10x, 40xR and 100xR objectives. Turret phase condenser with 10x, 40x and 100x phase annuli & BF position, centering telescope, green filter | - | - | - | - | |||
| Dark Field Attachment | Dark-field Condenser (Dry) | - | - | - | - | |||
| Dark-field Condenser (Oil) | - | - | - | - | ||||
| Reflected Light Source | Filter | Excitation | Diachronic Mirror | Barrier Filter | - | - | - | + |
| Blue excitation | BP460~490 | DM505 | BA515 | - | - | - | + | |
| Green excitation | BP510~550 | DM570 | BA590 | - | - | - | + | |
| Lamp | 3W LED Lamp(465-476nm) | - | - | - | - | |||
| Immersion Oil | Fluorescent Free Oil | - | - | - | - | |||
| Note:+Standard Outfit, - Optional | ||||||||
HD800
HD800: A Wide Range of Accessories to be Equipped with the Microscope for Multi-purpose It is an outstanding Assistant in Industrial, Medical and Scientific Research Areas.
Features
- Excellent image quality with infinite optical system
- Comfortable Operation with Ergonomic Design Principle.
- With LED light for both incident and transmitted illumination, providing even illumination and life expectancy can reach 25000 hours .
- Wide Range of Accessories to be Equipped with the Microscope for Multi-purpose It is an Outstanding Assistant in Industrial, Medical and Scientific Research Areas .
| Technical Data | HD800 | |||||||
|---|---|---|---|---|---|---|---|---|
| Drawing Tube | Binocular Head, 20°Inclination，Interpupilary distance 55-75mm | + | ||||||
| Tilting Binocular Head, 0°-35° Inclination | - | |||||||
| Photo Attachment(one photo tube) | - | |||||||
| Photo Attachment(two photo tube) | - | |||||||
| Eyepiece | EW10×/22 | + | ||||||
| WF15×/16 | - | |||||||
| WF20×/12 | - | |||||||
| Zoom Objective | 0.8×-5× | + | ||||||
| 0.8×-6.4× | - | |||||||
| 0.8×-8× | - | |||||||
| Objective | Plan Achromatic Objective 1× | + | ||||||
| Plan Apochromatic Objective 0.5x/1x | - | |||||||
| Plan Achromatic Objective 2× | - | |||||||
| Achromatic Objective 0.3× | - | |||||||
| Zoom Ratio | 1: 6 | + | ||||||
| 1: 8 | - | |||||||
| 1: 10 | - | |||||||
| Working Distance | 78mm | + | ||||||
| Focusing | Focusing Range 105mm | + | ||||||
| Transmission or Reflection LED Illumination, Brightness Adjustable | + | |||||||
| Coaxial Illumination | - | |||||||
| Fluorescent Attachment | - | |||||||
| Dark Field Attachment | - | |||||||
| Photo/ Video Attachment | - | |||||||
| SimplePolarization Set | - | |||||||
| Iris Diaphragm | - | |||||||
| Mechanical Stage | - | |||||||
| Temperature Stage | - | |||||||
| Universal Table Stand | - | |||||||
| D Stand | - | |||||||
| Coaxial Coarse & Fine Focusing Unit | - | |||||||
| Note:+Standard Outfit, - Optional | ||||||||
HD700/750
Green Biological Microscope Series
Comfortable and Efficient, Various Observations, Intelligent, Environmentally Friendly
High quality, high function and excellent cost performance Best choose with ergonomic design, sharp image display & wide viewing field Water is used instead of cedar oil for 100x water-immersion objective. Excellent image, easy to operate and better for environment.
Features
-
Excellent Optical Design
-
RDN-2 Series Infinity Optical System
RDN-2Series infinity plan objectives can provide high contrast and very flat image up to FN 22. With FN 22 wide field eyepieces, the system always brings you sharp, excellent resolution and high signal to noise ratio imaging. -
22mm Wide Field of View
The Green microscope achieves the wide field of 22mm view with 10x eyepieces for a more comprehensive observation content and faster sample observation. The eyepiece adopts a flat field distortion-free design to prevent the edge of the field from being imaginary and stray light. -
Various Observation Methods
With the deepening of research in various fields, a single observation mode can no longer meet the daily scientific research work. As a continually upgradable microscope, Green can be extended on basic models to show a variety of observation capabilities.
| Item | Green Series Outfit | HD700 | HD750 | Optical System | Infinity Optical System with Parfocal distance 80mm | + | + | ||
|---|---|---|---|---|---|---|---|---|---|
| Eyepiece | EW10x/22mm with diopter adjustment and Anti-mold | + | + | ||||||
| Viewing Head | Infinity Seidentopf Binocular Viewing Head, inclined at 45°, Interpupillary 47-78mm, Splitting ratio 50/50 | + | + | ||||||
| Infinity, Seidentopf Trinocular Viewing Head, Inclined at 30°， Interpupillary 47-78mm, Splitting ratio 50/50 (100/0 or 0/100 is optional) | - | - | |||||||
| Wireless Integrated 6MP Digital Head with Multi-Thread Scanning technology | - | - | Inclinable Binocular Viewing Head | - | - | ||||
| Objective | Infinity Plan Objective HNIS45 Series – 2X, 4X, 10X, 20X, 40X, 60X, 80X, 100X (bedew –immersion) | + | - | ||||||
| Infinity Plan Objective RDN-2 Series – 2X, 4X, 10X, 20X, 40X, 60X, 80X, 100X (bedew –immersion) | - | - | |||||||
| Infinity Plan Objective HNIS60 Series – 2X, 4X, 10X, 20X, 40X, 60X, 80X, 100X (bedew –immersion) | - | + | Infinity Phase Contrast Objective HNIS45 Series – 2X, 5X, 4X, 10X, 20X, 40X, 20X, 40X, 50X, 60X, 80X, 100X (bedew/Dry) | - | - | ||||
| Infinity Phase Contrast Objective HNIS60 Series – 2X, 5X, 4X, 10X, 20X, 40X, 20X, 40X, 50X, 60X, 80X, 100X (bedew/Dry) | - | - | |||||||
| Nose piece | Reversed Quintuple/ Quadruple Nosepiece(Non-coding) | + | - | ||||||
| Reversed Quintuple/ Quadruple Nosepiece(Coding) | - | + | |||||||
| Rack less Stage | Hard coated anodized surface Rack less Stage 230mm x 150mm, Moving Range 78mm x 54mm with specimen holder for double slide, one – hand operation | + | + | ||||||
| Condenser | Inserted Abbe Condenser NA1.25(Including Empty Plate) | + | + | ||||||
| Bright Field – Phase Contrast Plate (4x-100x Universal) | - | - | |||||||
| Bright Field - Dark Field Plate | - | - | |||||||
| Focusing System | Coaxial Coarse and Fine Adjustment, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Fine division 0.002mm,Moving Range 30mm | + | + | ||||||
| Illumination | 1W S-LED | + | - | ||||||
| 3W S-LED (LCD Display Magnification, Timing Sleep, Brightness Indication and Lock, etc.) | - | + | |||||||
| Fluorescence | 3W LED, Two Wave Range (B, G, U, V can be combined), Fly-eye Lens Illumination | - | - | ||||||
| Accessories | 1x Photo Attachment | - | - | ||||||
| 0.5x Photo Attachment | - | - | |||||||
| Simple Polarization Set | - | - | |||||||
| Camera | - | - | |||||||
| Smart TAG Software | - | - | |||||||
| Filter | Green | + | + | ||||||
| Note: + Standard Outfit, - Optional | |||||||||
HD400
HD400:Stereo Zoom Microscope offer upright, un-reversed 3D images which are very clear throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distance. HD400 series stereo microscope is an Ideal instrument in academic, medical and industrial field.
Features
- High quality,high Function and excellent cost performance.
- Best choose with ergonomicdesign, sharp image display and wide viewing field.
- Providing a wide viewing field of ￠20mm with the zoom ratio of 1:4.5.
- Stereo Microscope for teaching .Easy operation. Excellent cost performance..
- Ideal instrument in academic, medical and industrial field.
| Technical Data | HD450 | HD450A | HD450B | HD450SB | HD450S | ||||
|---|---|---|---|---|---|---|---|---|---|
| Viewing Tub | Binocular head, incli -d at 45° | + | + | ||||||
| Binocular head, incli -d at 60° | + | ||||||||
| Trinocular head, incli -d at 45° | + | + | |||||||
| In-Built Digital Camera Head with 3 MP Camera with Software | - | - | - | - | - | ||||
| Diopter Adjustment Eyepiece | EW10×/Φ20 | + | + | + | + | + | |||
| EW10×/Φ22 | - | - | |||||||
| WF15×/Φ16 | - | - | - | - | - | ||||
| WF20×/Φ11 | - | - | - | - | - | ||||
| WF30× | - | - | - | - | - | ||||
| WF10×Eyepiece with cross hair | - | - | - | - | - | ||||
| Objective | Zoom objective | 0.7×～3× | + | + | + | ||||
| 1×～4.5× | + | + | |||||||
| Auxiliary objective | 2× | - | - | - | - | - | |||
| 0.75× | - | - | - | - | - | ||||
| 0.63× | - | - | - | - | - | ||||
| 0.5× | - | - | - | - | - | ||||
| Working Distance | 97mm | + | + | + | + | + | |||
| + | + | + | + | + | |||||
| Illumination | LED Reflection illumination | + | + | + | + | + | |||
| LED Transmission illumination | + | + | + | + | + | ||||
| TV mount | - | - | |||||||
| 0.5×C Mount | - | - | |||||||
| 1×C Mount | - | - | |||||||
| Note:+Standard Outfit, - Optional | |||||||||
HD300
HD300: series microscopes are classical biological microscopes with infinite optical system EW 10x/20 eyepiece is optional. HD300 series microscopes are ideal instrument in biological, histological, pathological field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.
Features
- Excellent image quality with infinitive optical system
- Comfortable operating with ergonomic structure.
- Comfortable operating with ergonomic design.
| Technical Data | HD300 | |
|---|---|---|
| Viewing Head | Compensation Free binocular head, 30° inclined, Interpupillary 48-75mm | + |
| Compensation Free trinocular head, 30° inclined, Interpupillary 48-75mm | - | |
| In-Built Digital Camera Head with 3.2 MP Camera | - | |
| Eyepiece | Wide Field Eyepiece WF 10×/18 | + |
| Extra Wide Field Eyepiece EW10×/20 with Diopter Adjustment | - | |
| Objective | Infinitive Semi-plan Achromatic Objectives 4×, 10×, 40×, 100× | + |
| Infinitive Plan Achromatic Objectives 4×, 10×, 40×, 100× | - | |
| Nosepiece | Quadruple Nosepiece | + |
| Stage | Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm | + |
| Condenser | Sliding-in centerable condenser NA1.25 | + |
| Focusing | Coaxial Coarse & Fine Adjustment, Moving Range 20mm | + |
| Illumination | S-LED Illumination, Brightness Adjustable | + |
| 6V/ 20W Halogen Lamp, Brightness Adjustable | - | |
| Phase Contrast Kit | - | |
| Dark Field Attachment | - | |
| Note:+Standard Outfit, - Optional | ||
HD200D
HD200D:binocular digital microscope has a built-in 1.3 Mega Pixel CMOS camera. It is economic, Practical and easy to operate. It supports Windows Vista/ Win7/ Win 8/Mac Operation System and Multi-language (Arabic, Chinese, English, French, German, Japanese, Polish and etc). The software can preview, take photos and video, do image processing and measurement it is ideally suited for school biological education and medical analyses area. It can be widely used in clinics, hospitals, Schools, academic labs and scientific research department.
Features
- Integrated digital high resolution microscope with high resolution camera.
- Digital sensor technology.
- USB 2.0 output, plug and unplug freely.
- Support WINDOWS/2000/XP/Vista System, equipped with powerful applied software.
- Economic features, widely used in academic demonstration and health system.
| Specification | HD 200D | |
|---|---|---|
| Description | ||
| Viewing Head | Binocular Microscope with 30° inclined, Siedentopf Head ,Wide field Eye piece pair with Rotatable through 360º | + |
| Body | Aluminum die cast body | + |
| Eyepiece | Eyepiece 10X Wide Field with diopter adjustment & 18mm FN Eyepieces- Pair ) | + |
| Eyepiece 16×/ 11 (Eyepieces- Pair ) | - | |
| Objective | C- Plan Achromat Objectives 4x, 10x, 20x, 40x, 60x, 100x | - |
| Semi-Plan Achromat Objectives 4x, 10x, 20x, 40x, 60x, 100x | - | |
| Achromat Objectives 4x, 10x, 20x, 40x, 60x, 100x | + | |
| Nosepiece | Backward Quadruple Nosepiece | + |
| Stage | Right hand controlled Rectangular Stage 140x140mm, moving range 75x50mm with Anti Scratch Treated, Double Layers Mechanical Stage Adjustment. Range 23mm, division 0.002mm, Vertical Stage Movement, All-metal internal parts for are long-term durability, | + |
| Focusing System | Low position and self adjusting focusing mechanism co-axial Coarse and Fine Focusing controls with Knobs in the Bearing for smooth-moving, All-metal internal parts ensure long-term durability, slot for contrast sliders, Slip-clutch protects against over-focusing, Stage-stop prevents slide and objective damage and Low position and self adjusting focusing mechanism, | + |
| Condenser | NA1.20 Abbe Condenser with lris Diaphragm and Filter Holder, Rack & Pinion Adjustment | + |
| Diaphragm | Plastic iris diaphragm shield protects iris from damage, | + |
| Upgrade | Dark field and phase contrast, Polarization | |
| Illumination | LED 3W 6000 Kelvin Colour Temperature and Brightness Adjustable Knob within reaching Location | - |
| Halogen Lamp 6V/ 20W，Brightness Adjustable | + | |
| Digital Part | In-Built Digital Camera 1280H×1024 V | + |
| - | ||
| Rechargeable Battery | In – Built Rechargeable Battery with power backup | - |
| Note:+Standard Outfit, - Optional | ||
HD110D
HD110D:HD110D digital biological microscope is a classical biological microscope. With a built-in 1.3 MP cameras and software, it can take images, videos and make measurements. HD110D is an ideal instrument in biological, pathological field and can be widely used in medical and sanitary establishment, laboratories, institutes, academic laboratories, colleges and universities.
Features
- Integrated digital microscope, resolution 1280×1024（1.3 pixel）
- USB 2.0 output, plug and unplug freely.
- Support WINDOWS/2000/XP/Vista System, equipped with powerful applied software.
- Economic features, widely used in academic demonstration and health system.
| Technical Data | HD110D | |||||||
|---|---|---|---|---|---|---|---|---|
| Viewing Head | Sliding Binocular Head, Inclined at 45°, Interpupillary 55-75mm | + | ||||||
| Camera System | Valid Pixel | 1280×1024（1.3M Pixel） | + | |||||
| Output Mode | USB2.0 | + | ||||||
| Operation System | WINDOWS 2000/XP/VISTA | + | ||||||
| Software | Smart Tag Image Analysing Software | + | ||||||
| Range of Viewing Field | >75% | + | ||||||
| Eyepiece | WF10×/ 18 | + | ||||||
| P16×/11 | - | |||||||
| Nosepiece | Toward Quadruple Nosepiece | + | ||||||
| Objective | Achromatic Objective 4×、10×、40×、100× | + | ||||||
| Stage | Double Layers Mechanical Stage 140×140mm/75×50mm | + | ||||||
| Condenser | Abbe NA1.20 with Iris Diaphragm &Filter | + | ||||||
| Focusing | Coaxial Coarse & Fine Adjustment System, Range 28mm, Fine Division 0.002mm | + | ||||||
| Illumination | Halogen Lamp 6V/20W，Brightness Adjustable | + | ||||||
| Phase Contrast Kit | + | |||||||
| Dark Field Attachment | - | |||||||
| Polarization Attachment | - | |||||||
| Note:+Standard Outfit, - Optional | ||||||||
HD100
HD100: which is widely used in medical and hygienic establishments for conventional microscopic examination, general biologic, pathologic and bacteriological studies, clinical investigations and classroom demonstrations.
Features
- This is a brand new HD 100 Series dual LED illuminations and multi-power compound microscope. It has LED reflected light via an adjustable gooseneck from the rear of the nosepiece, and LED transmitted light coming from the base. The microscope has five magnification levels (40X, 100X, & 400X) This microscope is suitable for both home use and field use as it can be used with batteries in addition to the AC power. Application of HD100 Biological microscope: - which is widely used in medical and hygienic establishments for conventional microscopic examination, general biologic, pathologic and bacteriological studies, clinical investigations and classroom demonstrations. Designed in a very modern way what can take convenient and safe to your operations. .
